O-Rings
Install the O-ring in a specially designed groove. When the two parts are compressed, the O-ring is squeezed and deformed, thereby blocking the channel for fluid or gas leakage.

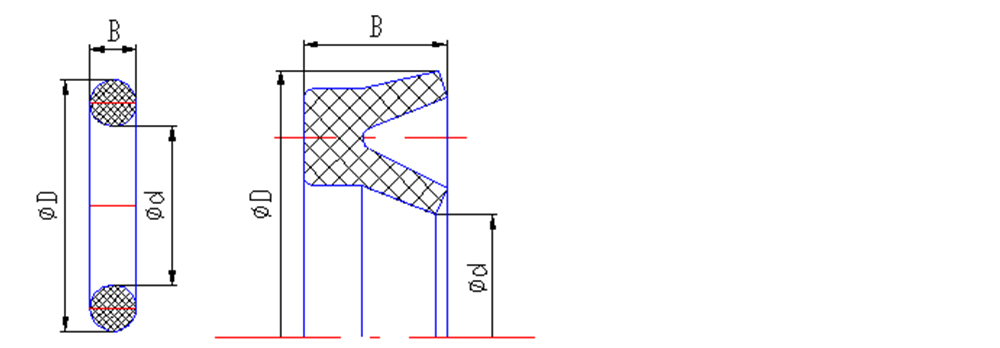

(A) (B) | |||
D | d | B | Model |
73.80 | 62.70 | 4.75 | 602595 |
40.40 | 31.05 | 3.96 | 602615 |
26.05 | 18.40 | 3.18 | 602646 |
67.50 | 56.30 | 4.75 | 602800 |
46.45 | 19.05 | 9.53 | 604838 |
12.00 | 8.20 | 1.90 | VPR15 |
123.00 | 111.00 | 2.20 | |
13.00 | 9.20 | 1.90 | |
