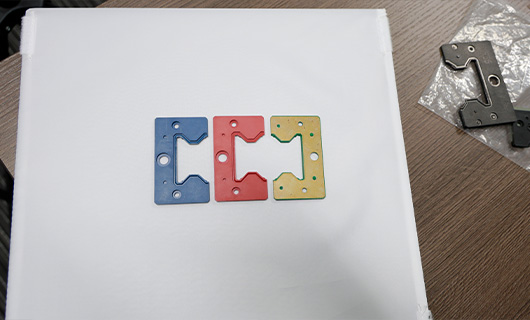

In precision equipment and automation devices, the slider system plays a crucial role in guiding and carrying, while the dust cover is an important barrier to protect this system. Its existence is like a layer of flexible yet solid armor, resisting the intrusion of external dust, debris, oil stains, etc. on the slide rail and slider. Especially for opposite sex slider dust covers, due to their diverse shapes, structures, and usage environments, the requirements for installation methods are more stringent. The seemingly simple installation process actually has a profound impact on protective performance, motion stability, and component lifespan.

1、 The direct relationship between installation method and dustproof performance

The primary function of a dust cover is to block foreign objects from entering the interior of the slider. The proper installation determines the quality of the sealing effect.

If the adhesion between the dust cover and the slider is uneven or there is a small gap, dust and iron filings may be sucked in during high-speed movement, causing scratches on the guide rail or jamming of the slider. And when the dust cover is pressed too tightly, it may increase frictional resistance, causing the slider to not run smoothly.

Therefore, when installing dust covers, it is necessary to find a balance between sealing and flexibility of movement.

Some high-precision equipment often adopts embedded installation method. Through precise slot design, the dust cover naturally adheres to the edge of the slider, not only ensuring sealing continuity but also reducing assembly errors.

2、 The influence of installation direction on protection and chip removal effect

The structure of the opposite sex slider dust cover is usually designed according to the shape, stroke direction, and usage environment of the slider. Some are folded, while others have guide angles or embedded support plates. Once the installation direction is reversed, it will destroy its original protective logic.

For example, in machining centers or cutting environments, the splashing direction of metal chips and coolant follows a certain pattern. If the installation direction of the dust cover is incorrect, the chip guide slope will be subjected to reverse force, causing impurities to accumulate and the sealing edge to lift, which will accelerate wear.

The correct installation should follow the direction of medium flow, so that the dust cover can naturally "drain" impurities during movement, achieving the effect of cleaning while moving.

3、 The impact of fixed methods on durability and maintainability

There are three main ways to fix the opposite sex slider dust cover: screw fixing, slot fixing, and adhesive fixing.

Screw fixation is suitable for equipment that can withstand vibration, stable and reliable, but requires high assembly accuracy.

Card slot fixation is easy to disassemble and maintain, suitable for equipment with medium frequency maintenance.

The adhesive fixation process is simple and suitable for light load environments, but long-term high temperatures may cause viscosity attenuation.

In long-term use, the rationality of the fixing method directly affects the lifespan of the dust cover. If not firmly fixed, the dust cover may loosen or shift under vibration; If tightened excessively, it will also affect the natural movement of the slider. Therefore, before installation, the fixed method should be comprehensively selected based on the equipment structure, vibration intensity, and maintenance cycle, rather than simply pursuing "firmness" or "speed".

4、 The influence of installation accuracy on sliding smoothness

The installation of the opposite sex slider dust cover is not only a matter of protection, but also closely related to the precision of the equipment's movement.

When the gap between the dust cover, slider, and guide rail is not properly controlled, there will be slight resistance changes when the slider moves, resulting in displacement errors. Especially in situations where high precision is required for repeated positioning, such as CNC machine tools and testing instruments, this error may be amplified.

For this reason, manufacturing companies often perform size calibration before assembly during installation, by detecting the flatness of the slide rail and the tension of the dust cover, to maintain uniform force throughout the entire range of travel, ensuring smooth and stable sliding.

5、 The details of the installation process reflect professionalism and craftsmanship

The installation process of the dust cover is not complicated, but it tests the meticulousness and experience of the assembly personnel. Every adjustment of the fit and every inspection of the sealing gap is a responsibility for the lifespan of the equipment.

An experienced technician can often judge whether the tightness of the dust cover is appropriate based on touch, and can hear whether there is a slight friction deviation from the sound of movement. The accumulation of such experience has made dust covers not only a line of defense, but also a reflection of mechanical reliability.

6、 Conclusion: Installation is an art of detail

The performance of the opposite sex slider dust cover depends not only on the material and design, but also on the precise and reasonable installation.

Properly installed, it can maintain stable protection and smooth movement during long-term operation; Improper installation cannot compensate for performance loss even with high-quality materials.

At the assembly site of each device, the installation process of dust covers may not be eye-catching, but it is these seemingly subtle steps that build the foundation for the stable operation of the entire system.

Professionalism originates from details, and in the details lies the respect and persistence for quality.
